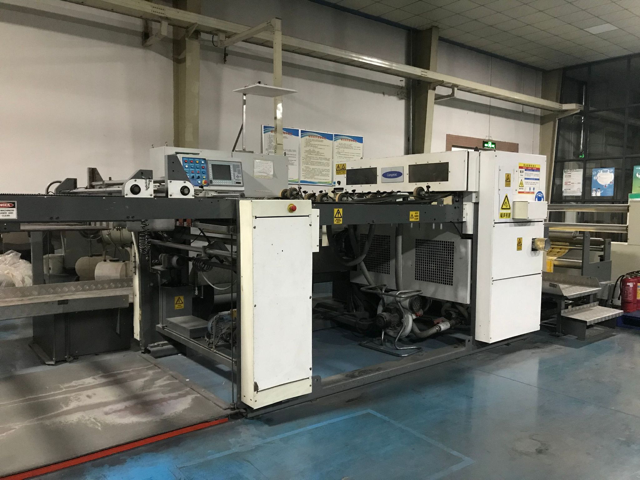

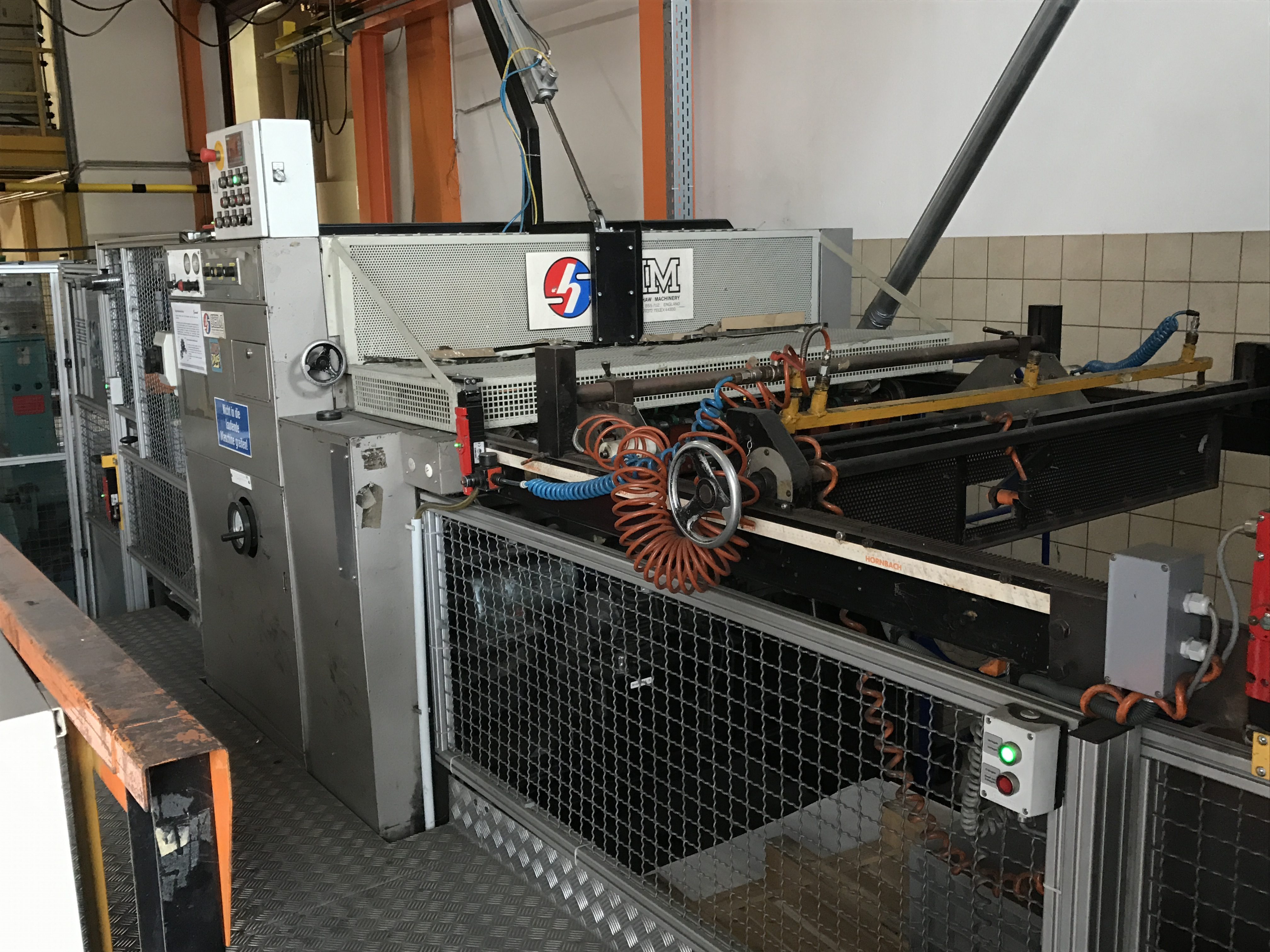

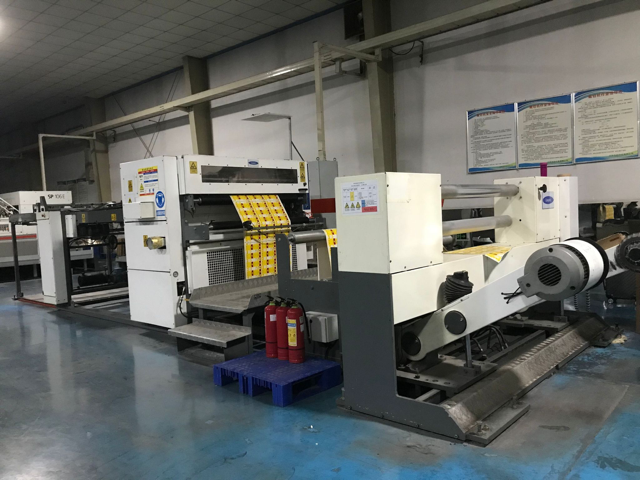

Refurbished SHM Sheeter. SHM model E series cross cut only sheeter comprising infeed draw rollers, single rotary knife cutting head, forwarding tape section plus lay-boy delivery unit. The machine is equipped with: • Single SHM “F” series unwind stand complete with air shaft and pneumatic braking. • De-curler unit. • Meech static eliminator. • Modified lay-boy for an improved access • Additional air shafts with pneumatically expanding chucks for 6” cores • Additional spare set of re-sharpened cross cut knives

Cut to register, tension control unit and one edge guide unit. Please contact us for more information

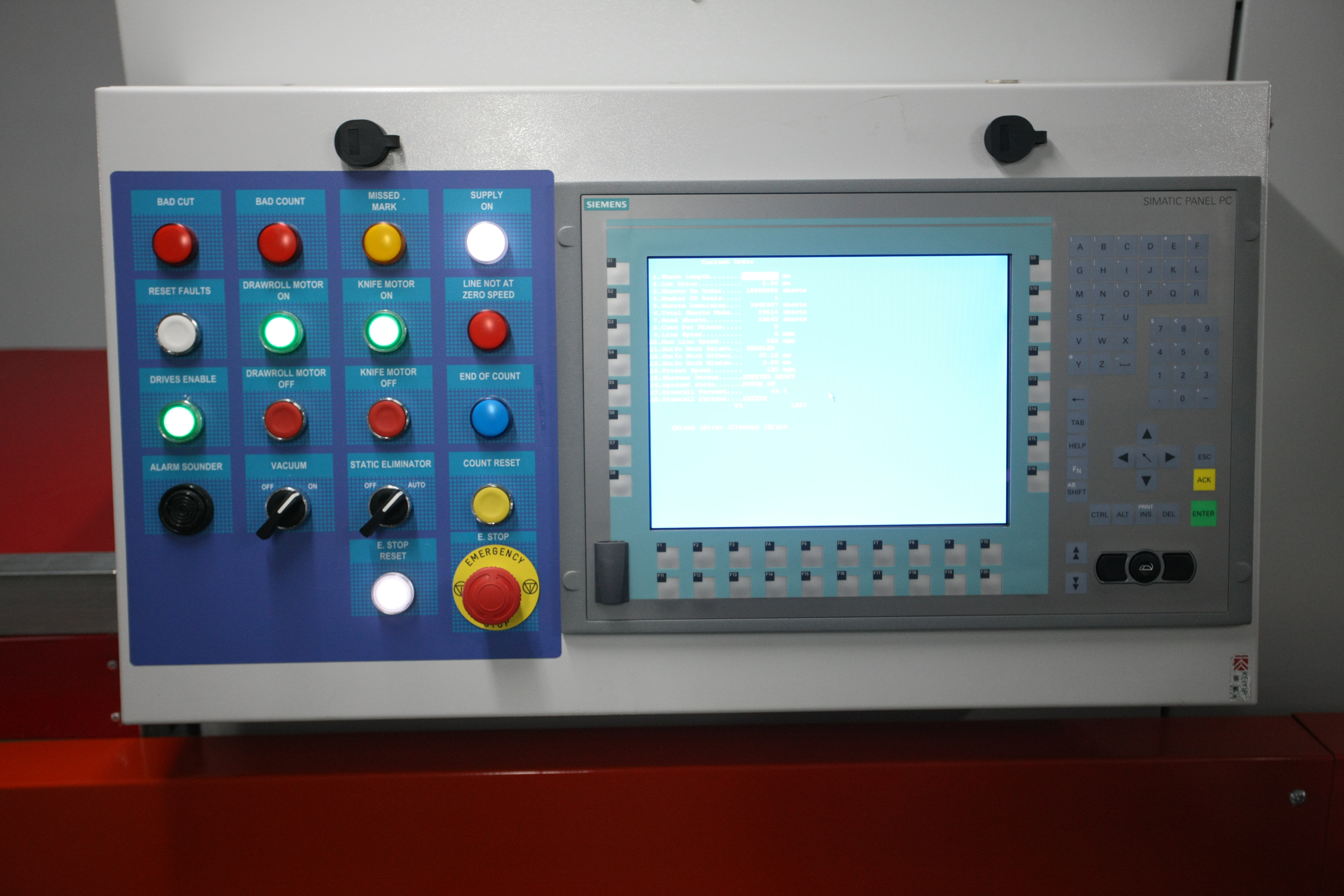

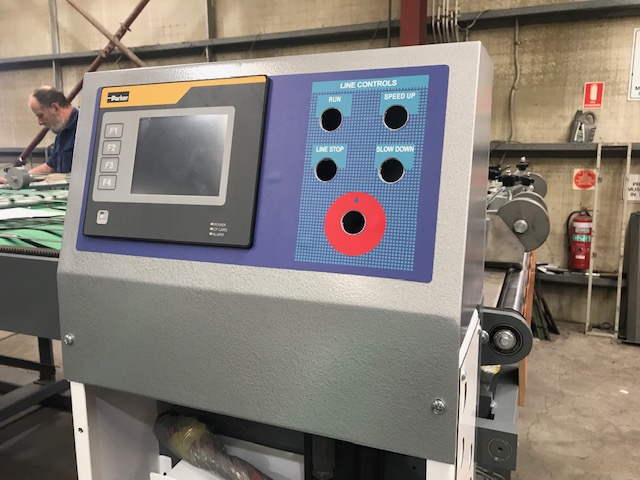

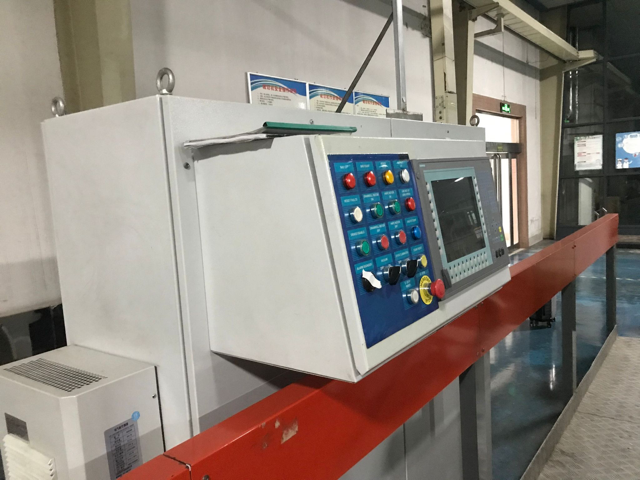

• Replacement of existing variable speed gearbox with servo controlled motor drive system with new touch screen operator main control panel and lay-boy auxiliary screen panel as illustrated • Drive upgrade for existing SHM 1400 sheeters with servo drives with new touch screen operator control panel and lay-boy auxiliary screen panel as illustrated.

Includes • Two (2) x Thomasset shaft-less unwinds with pneumatic disc brakes, supplied with cones for 3” cores and mechanically expanding chucks for 4” and 6” cores. (New Comprint unwind equipment can be supplied to fit your production needs) • Retro-fitted Interlocked mesh guard panels positioned on the operating side of the equipment and access shaft-less unwind with pneumatically operated lifting cylinder for moving up the integrated cutting head and tape section guarding. • Edge De-curler • Two (2) x bowed rubber spreader rollers • Trim waste removal system. • Three station slitting unit. • Single Rotary Knife and fixed dead knife cutting head with manual square-ness adjustment. • Electronic sheeter counter. • Two (2) tab inserters (not offered checked and working) • Forwarding tape section. • Automatic lowering lay-boy table. • Operator Platforms. • Documentation (operator and spare parts manuals supplied as PDF attachments). • Spare parts if available on site associated with the equipment.
